Description

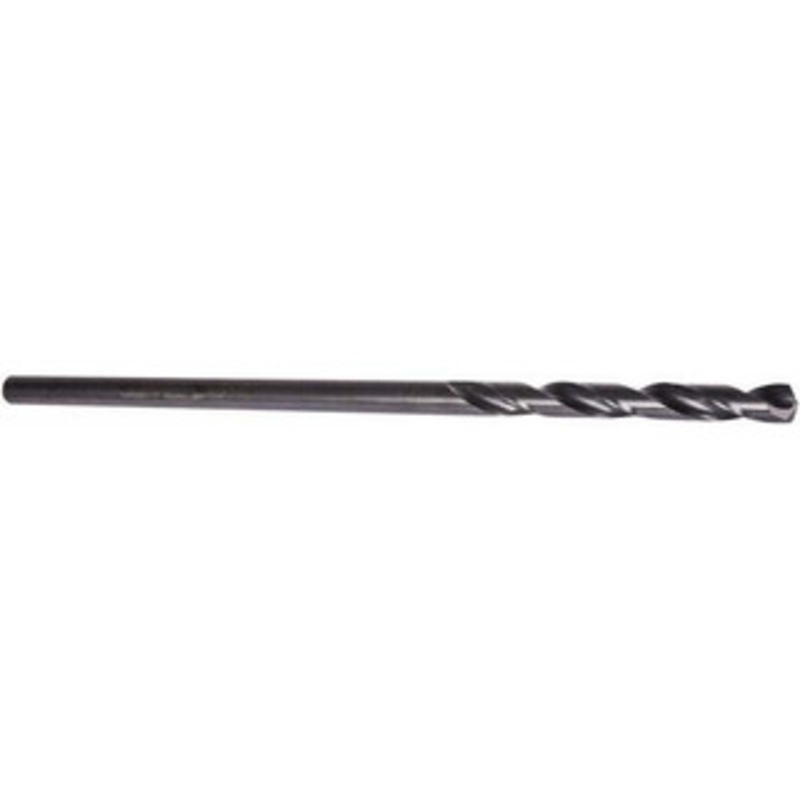

Precision Twist Drill 0.323″ Diam, 12″ OAL Oxide High Speed Steel Aircraft Extension Drill Bit 135 Point Angle

Manufacturer Part #: 059216

S/N: 78570942

UNSPSC: 23241637

UPC: 086071592163

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Drill Bit Size (Letter) P Overall Length (Inch) 12 Tool Material High Speed Steel Coating/Finish Oxide Series 502-12 Drill Point Angle (Degrees) 135 Drill Bit Size (Decimal Inch) 0.3230 Shank Type Straight-Cylindrical Flute Type Spiral Flute Length (Inch) 3-5/16 Flute Length (Decimal Inch) 3.3125 Cutting Direction Right Hand Flute Length X Diameter Ratio 4xD Self-Centering Yes Point Type Split Shank Diameter (Decimal Inch) 0.3230 Number of Flutes 2 Web Thinning Web-Thinned Web Configuration Tapered Tool Performance General Purpose Standards NAS 907 Type B
