Description

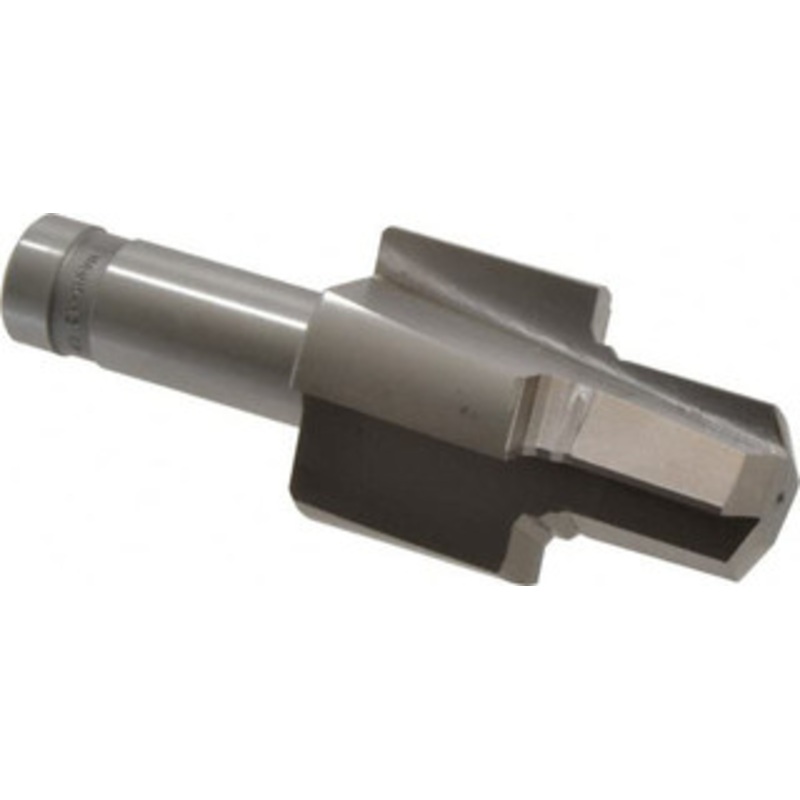

Made in USA 1-1/16 – 12″ Port, 1.665″ Spotface Diam, 3/4″ Tube Outside Diam, Reamer Pilot, Straight Shank, High Speed Steel Porting Tool 0.976″ Min Pilot Diam (AND Spec), 0.987″ Min Pilot Diam (MS Spec), 4-1/2″ OAL, 4 Flute, AND 10050, MS 33649

Manufacturer Part #: H49R-12

S/N: 00389544

UNSPSC: 23241603

(Minimum Order Quantity=1, Package Quantity=1)

Specifications:

Spotface Diameter (Decimal Inch) 1.6650 Tube Outside Diameter Compatibility (Inch) 3/4 Pilot Type Reamer Port Thread Size (Decimal Inch) 1-1/16 – 12 Tool Material High Speed Steel Minimum Pilot Diameter (Decimal Inch) 0.9760 Overall Length (Inch) 4-1/2 Number Of Flutes 4 Standards 0.975, 0.986, AND 10050, MS 33649 Shank Type Straight Identification Groove No Thread Type Straight Shank Diameter (Inch) 3/4 Material Application Abrasive Materials, Ferrous Metals, Non-Ferrous Metals Military Specification 0.986 Workpiece Compatibility Tubes Coating/Finish Bright AND Specification 0.975
