Description

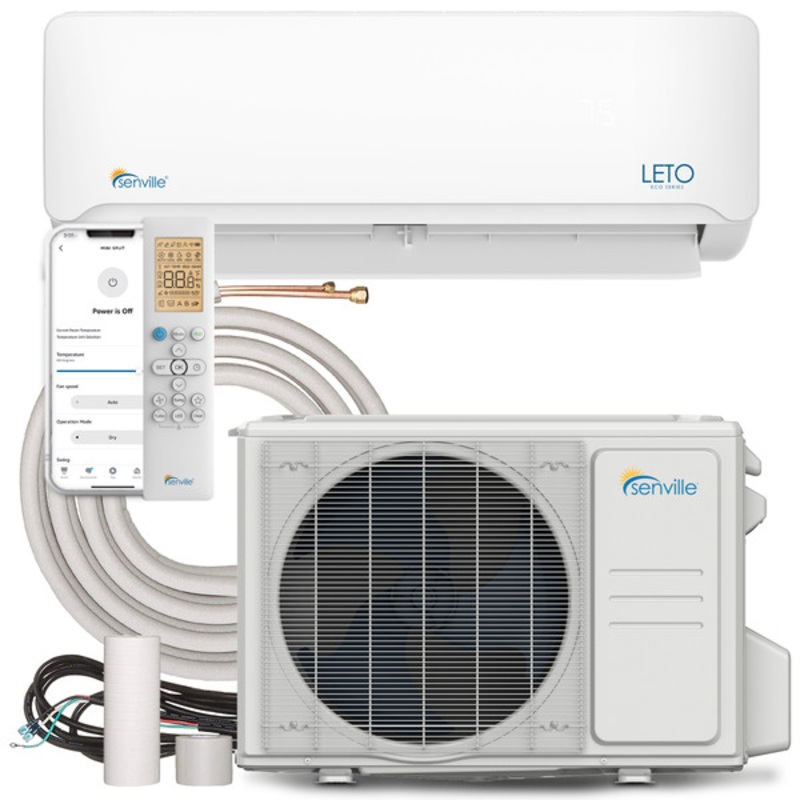

WithSEER Ratingsas high as 17, the Senville Leto surpasses many of the top name brands when it comes to efficiency. Enjoy the benefit of a cool climate controlled room, with a simple and easy to install air conditioner. Additionally, the 24000BTU Senville Leto offers you one of the quietest split air conditioning systems on the market, with minimal audible noise, ensuring the most comfortable overall experience.

Efficient DC Inverter

Senville has long manufactured their air conditioners with an emphasis on energy efficiency and affordability. Technology like its inverter compressor, results in drastic reduction of energy usage, ultimately making it one of the most efficient systems with Inverter Technology. Its technology like this that helps the ductless system to reach such high SEER ratings. Opt for a split system with Inverter Technology to ensure that you are minimizing your energy costs.

Manufacturer’s Warranty

All Senville models are backed by a comprehensive 5 year warranty designed to protect your purchase. All warranty claims are processed by the North American Headquarters of Senville, ensuring the highest levels of customer support and satisfaction. This 5 year warranty offers coverage on the compressor and a 2 year warranty on other parts. You can rest assured knowing that your purchase will be protected for up to 5 years, and we know that we are providing you with the highest quality product available.

Installation Kit & Accessories Included

Senville air conditioners include a complimentary installation kit, designed to ease installation as well as minimize installation costs. These units come pre-charged withR410A refrigerantand include the necessary piping for installation and hook up. Many inferior split units, may not include these parts, which eventually adds to your costs. Our Senville models come equipped and ready for installation from the moment your arrive at your door, with minimal additional cost.

Key Product Features

• 17 SEER
• Whisper Technology (Ultra Quiet)
• Inverter Technology
• Vertical Swing Function
• Built-In De-humidification Function
• Low Ambient Cooling (Up to -15C)
• Self-Cleaning Mode
• Self Diagnosis System

Product Video

Documentation and Certifications

• ETL Certified
• AHRI Certified
• Installation Manual (View Installation Manual)

Technical Specifications

Model Number SENL-24CD/X Power supply Ph-V-Hz 208-230V, 1Ph, 60Hz Cooling Capacity (range) Btu/h 24000 (6850-24500) Input W 2500 Rated current A 11.0 EER Btu/w 9.5 SEER Btu/w 17 Heating Capacity (range) Btu/h 24000 (7200-25000) Input W 2200 Rated current A 9.6 COP W/W 3.2 HSPF4 Btu/w 9.5 HSPF5 Btu/w 8.0 MINIMUM CIRCUIT AMPACITY A 20 MAX.FUSE A 25 Compressor Model KTM240D57UMT Type Rotary Brand GMCC Capacity W 7715 Input W 2085 Rated current(RLA) A 9.45 Locked rotor Amp(LRA) A – Thermal protector – Thermal protector position – Capacitor uF – Refrigerant oil/oil charge ml VG74/670 Indoor fan motor Model ZKFP-58-8-1 Brand Brand Ocean Input W 116 Output W 60 RLA A 0.37 LRA A – Winding Resistance – Capacitor uF – Speed(Hi/Mi/Lo) r/min 1100/900/750 Indoor air flow (Hi/Mi/Lo) m3/h 1200/1000/765 Indoor air flow (Hi/Mi/Lo) CFM 706/588/450 Indoor noise level (Hi/Mi/Lo) dB(A) 48/42.5/34 Indoor unit Dimension(W*D*H) mm 1080x226x335 Dimension(W*D*H) inch 42.52×8.90×13.19 Packing (W*D*H) mm 1155x415x320 Packing (W*D*H) inch 45.47×16.34×12.40 Net/Gross weight Kg 13.7/18 Net/Gross weight lbs. 30.2/39.68 Outdoor fan motor Model ZKFN-50-8-2-3 Input W 50 Output W 115 RLA A 0.5 LRA A – Winding Resistance 37.3 Capacitor uF – Speed r/min 800/750/650 Outdoor air flow m3/h 3100 Outdoor air flow CFM 1823 Outdoor noise level dB(A) 58 Outdoor unit Dimension(W*D*H) mm 845x363x702 Dimension(W*D*H) inch 33.27×14.29×27.64 Packing (W*D*H) mm 965x395x775 Packing (W*D*H) inch 37.99×15.55×30.12 Net/Gross weight Kg 47.7/50.9 Net/Gross weight lbs. 105.16/112.22 Refrigerant type g R410A/1780 Refrigerant type oz R410A/62.79 Refrigerant precharge ft 25 Additional charge for each ft oz 0.322 Design pressure PSIG 550/340 Refrigerant piping Liquid side/ Gas side mm(inch) 9.52/15.9(3/8″/5/8″) Max. refrigerant pipe length m 30 Max. refrigerant pipe length ft 98 Max. difference in level m 20 Max. difference in level ft 66 Connection wiring 16AWG*4 Stranded, unshielded Thermostat type Remote Control Room temperature Indoor(cooling/ heating) 1732/030 Indoor(cooling/ heating) 6290/3286 Outdoor(cooling/heating) -1550/-1530 Outdoor(cooling/heating) 5122/586 Application area (Cooling Standard) m2 – Application area (cooling standard) sq.ft 1000-1250 Qtyper 20 /40 /40’HQ 60/126/142
